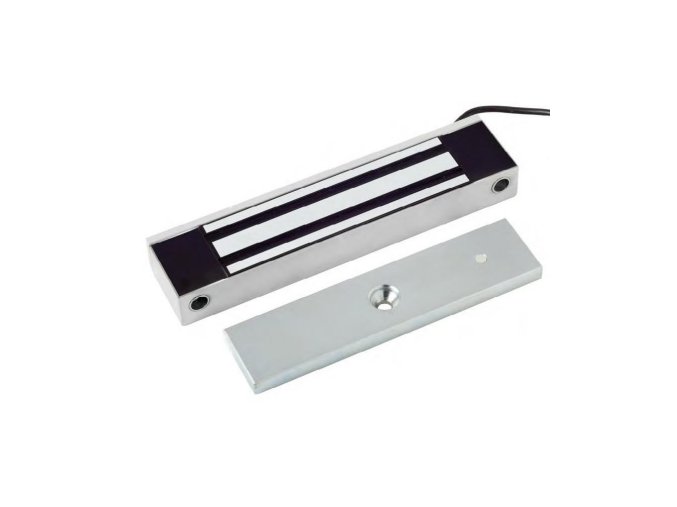

Electromagnetic Lock 300kg, 12/24V DC, NC, IP68
Electromagnetic Lock 300kg, 12/24V DC, NC, IP68
Popis
Electromagnetic Lock 300kg, 12/24V DC, Waterproof, Contact N.C., IP68
Description:
- Models EDT30W, EDT35W, EDT50W (waterproof) are electromagnets suitable for outdoor installation
- The stainless steel body and the appropriate insulation of the electrical parts, allow a high degree of protection (IP68) that guarantees a correct operation even in high humidity environments
- equipped with status sensor (EDTxxw-001)
- All electrical connections are made directly to the exposed wires/terminal
- The keeper plate position is monitored by the status sensor, which discriminates whether it is attached or not to the electromagnet when it
is powered
- Standard power supply: 12 Vdc or 24 Vdc programmed directly on the electromagnet
Fixing:
- Direct (standard inst.) or with additional brackets
Hmotnost |
2.6 kg |
Napětí
|
12V DC, 24V DC |
Přídržná síla
|
300 kg |
IP krytí
|
IP68 |
Rozměr elektromagnetu
|
228x53x29.5 mm |
Rozměr přídržné.desky
|
195x45x11 mm |
