Electromagnetic Lock 350kg, 12/24V DC, IP68

Neohodnoceno

Novinka Efekt lupa
image 2023 02 23 183029538

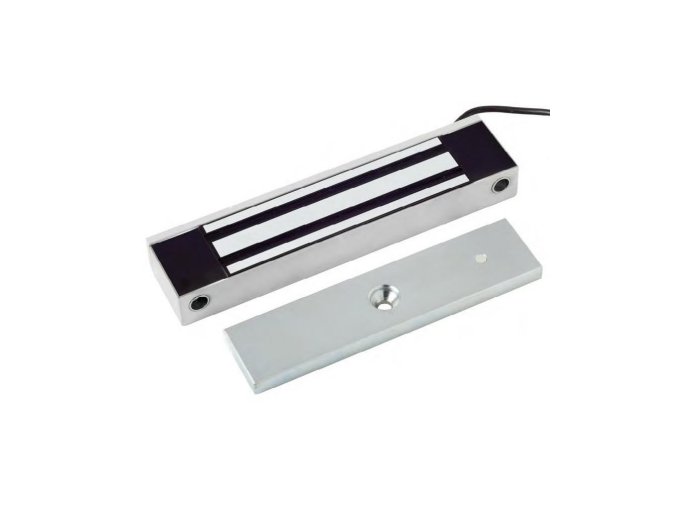

Electromagnetic Lock 350kg, 12/24V DC, Waterproof, IP68

The electromagnetic locks of EDT series, are generally used to hold closed security doors, emergency exits, panic doors, access and transit in general. They are widely used associated with different access control technologies.

Cena 4 576,72 Kč bez DPH
5 537,83 Kč

Parametry

Značka ELFRI
Kategorie Elektromagnetické zámky
Zvolte variantu
Kód produktu EDT35W-001 Signalizace: Ano Na dotaz 5 537,83 Kč
4 576,72 Kč bez DPH

Kód produktu EDT35W-000 Signalizace: Ne Na dotaz 5 537,83 Kč
4 576,72 Kč bez DPH



Popis

Electromagnetic Lock 350kg, 12/24V DC, Waterproof, IP68

Typical application for swing doors.

Description:

  • Models EDT30W, EDT35W, EDT50W (waterproof) are electromagnets suitable for outdoor installation
  • The stainless steel body and the appropriate insulation of the electrical parts, allow a high degree of protection (IP68) that guarantees a correct operation even in high humidity environments
  • equipped with status sensor (EDTxxW-001)
  • All electrical connections are made directly to the exposed wires/terminal
  • The keeper plate position is monitored by the status sensor, which discriminates whether it is attached or not to the electromagnet when it
    is powered
  • Standard power supply: 12 Vdc or 24 Vdc programmed directly on the electromagnet



Fixing:

  • Direct (standard inst.) or with additional brackets
Napětí 12V DC, 24V DC
Přídržná síla 350 kg
IP krytí IP68
Rozměr elektromagnetu 228x53x29.5 mm
Rozměr přídržné.desky 190x45x11 mm
Proudové zatížení 12VDC - 500mA, 24VDC - 250mA
