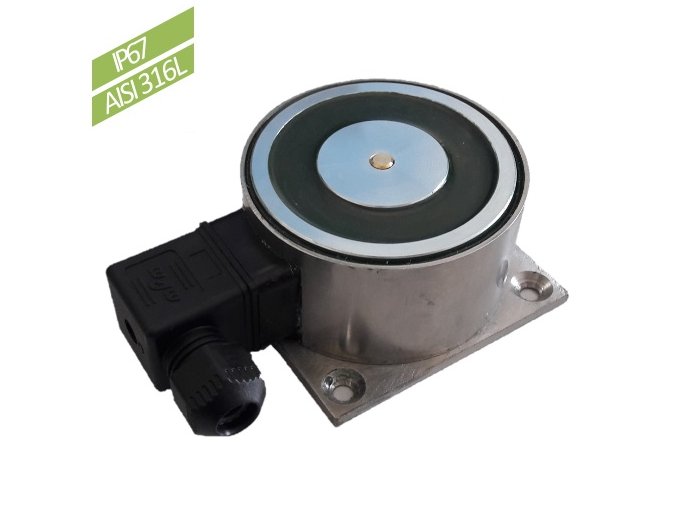

Elektromagnet S59, Nerez - 150kg (IP67)

Detailní popis produktu

Elektromagnet S59 - Přídržná síla 150kg, IP67

• This model is IP67 certified suitable for environments where corrosion maximum protection is required (ex. Passenger ships)
• The magnetic surface of the coupling portion to the keeper plate is treated with technological solutions for a greater resistance to oxidation
• The standard supply includes, optionally, the keeper plate S02150, SH2150 or S04150
• It does not have the release button
• It is available with 150 kg holding force

Construction:
• The fixing base and the external part of the magnetic core (B) are in AISI316L

Electrical connection:
• Made through a connector with strain relief and a protection circuit

Standard power supply: 24 Vdc

Variants and accessories:
• Different supply voltage
• AC power supply
